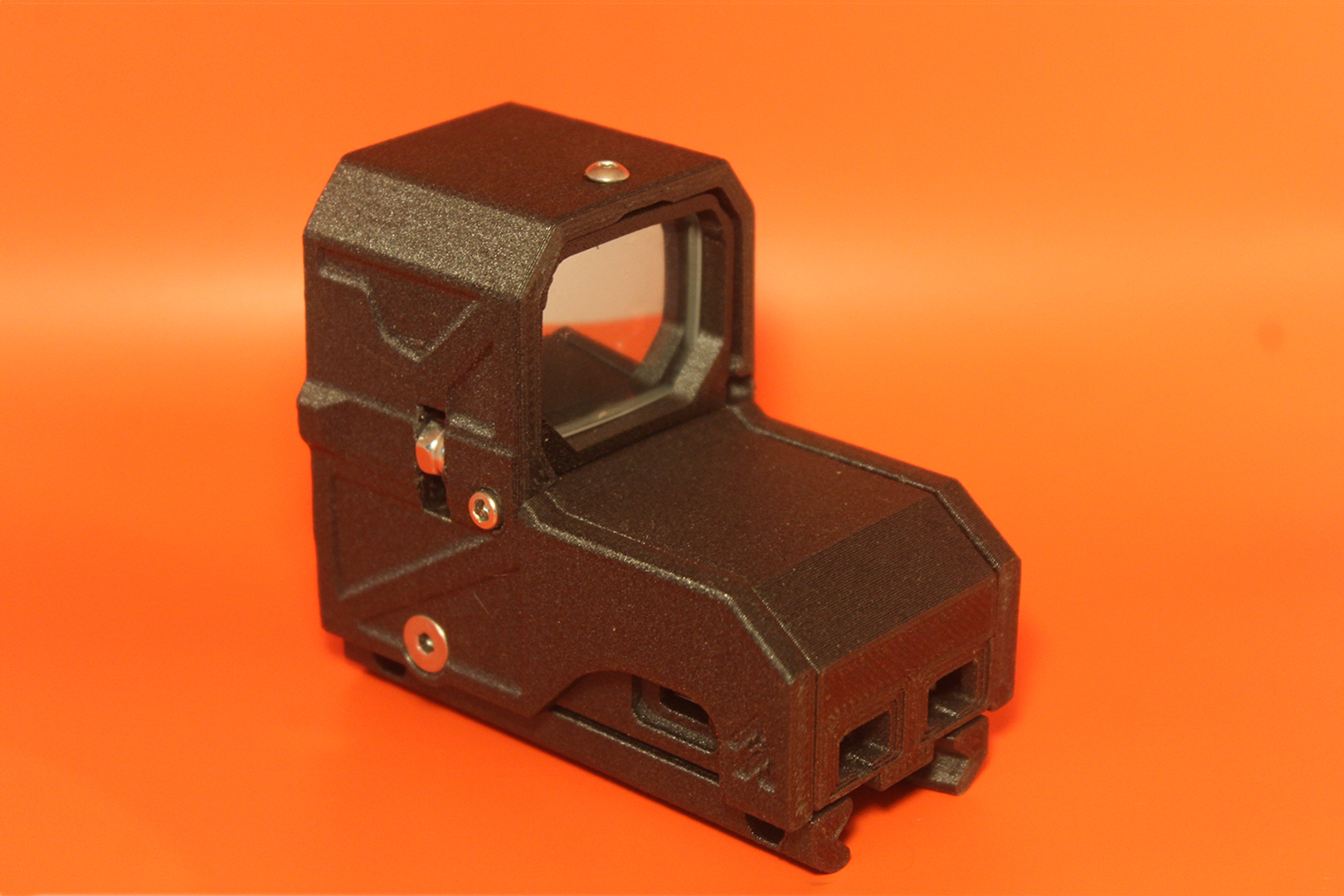

AWMS V1.2

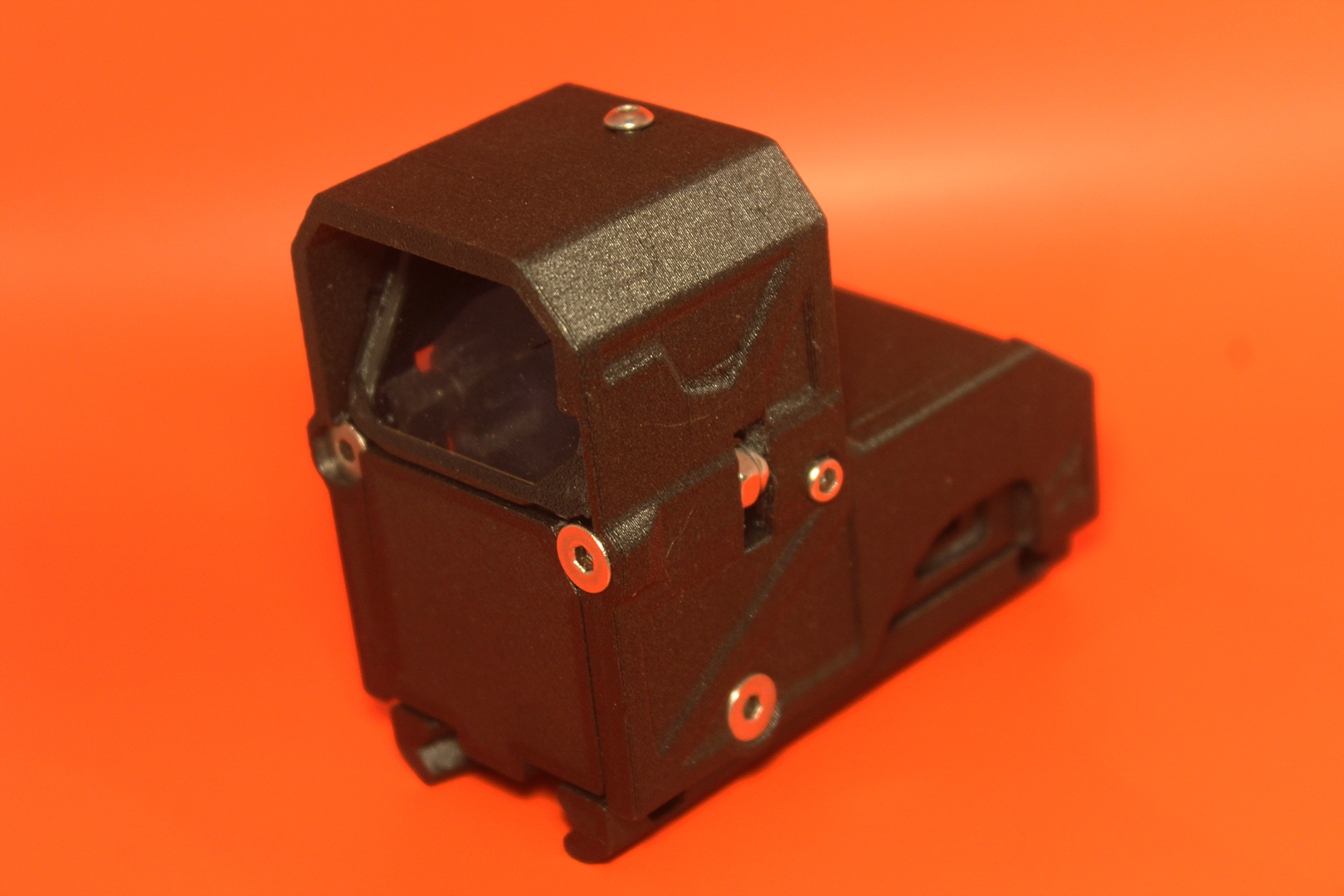

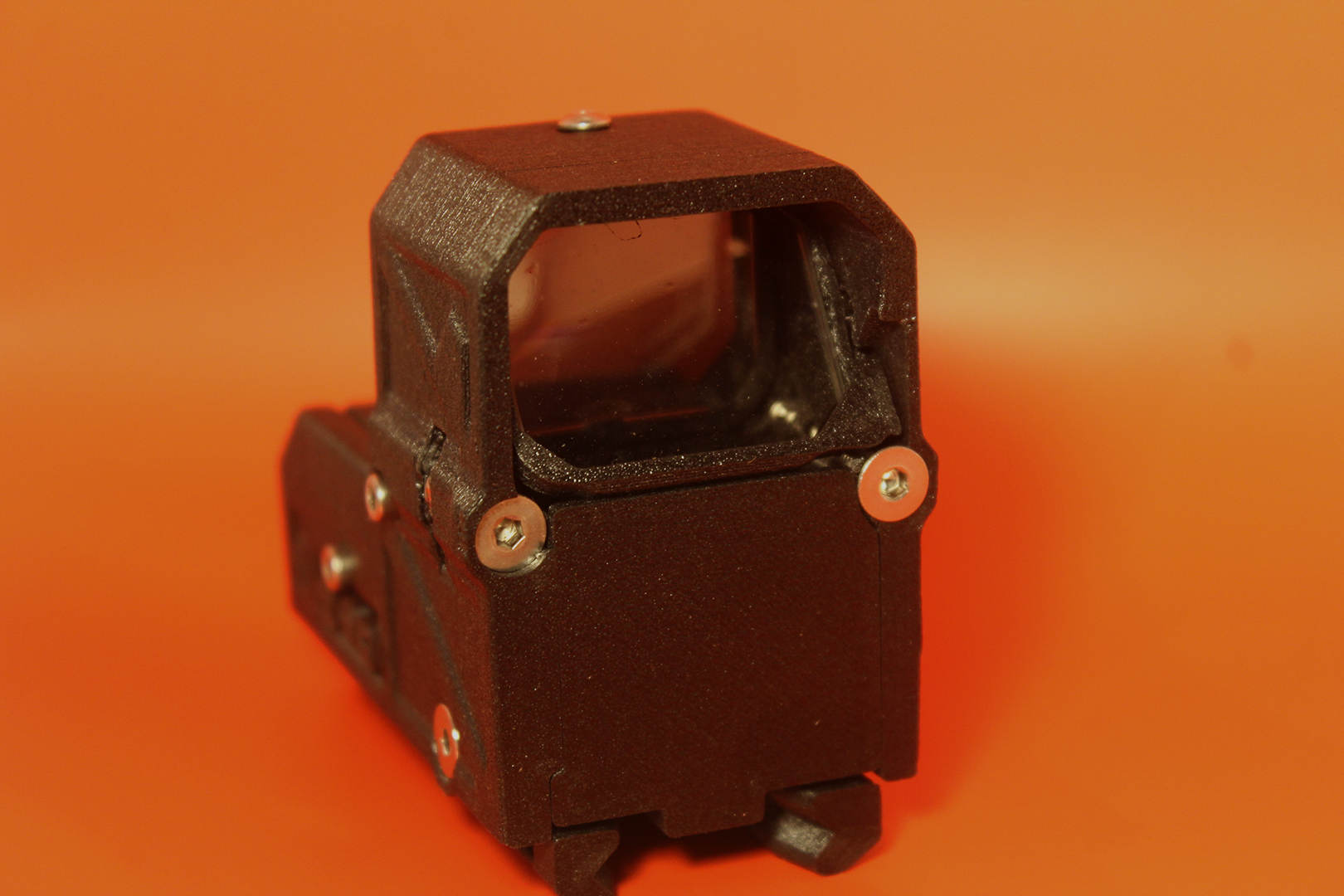

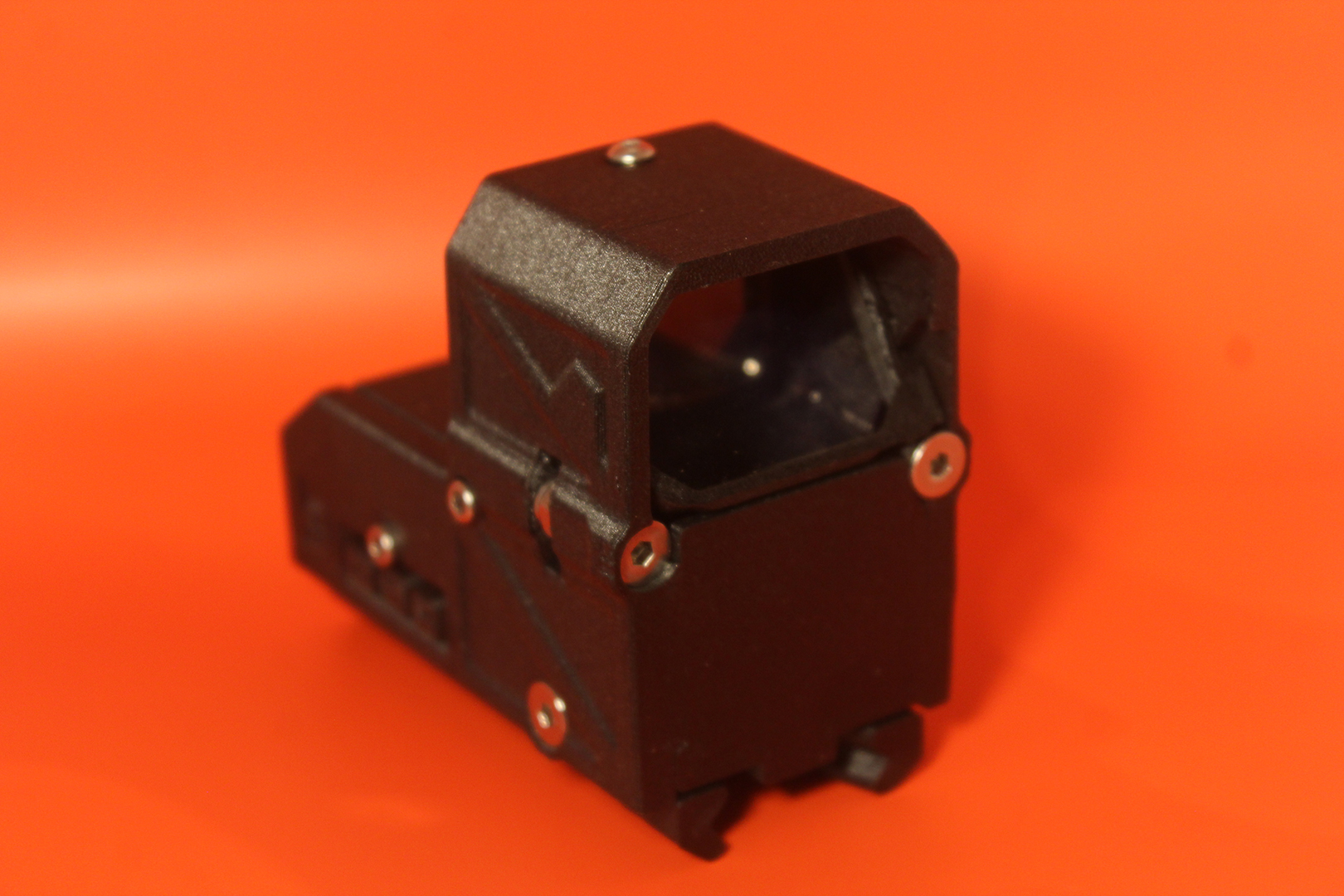

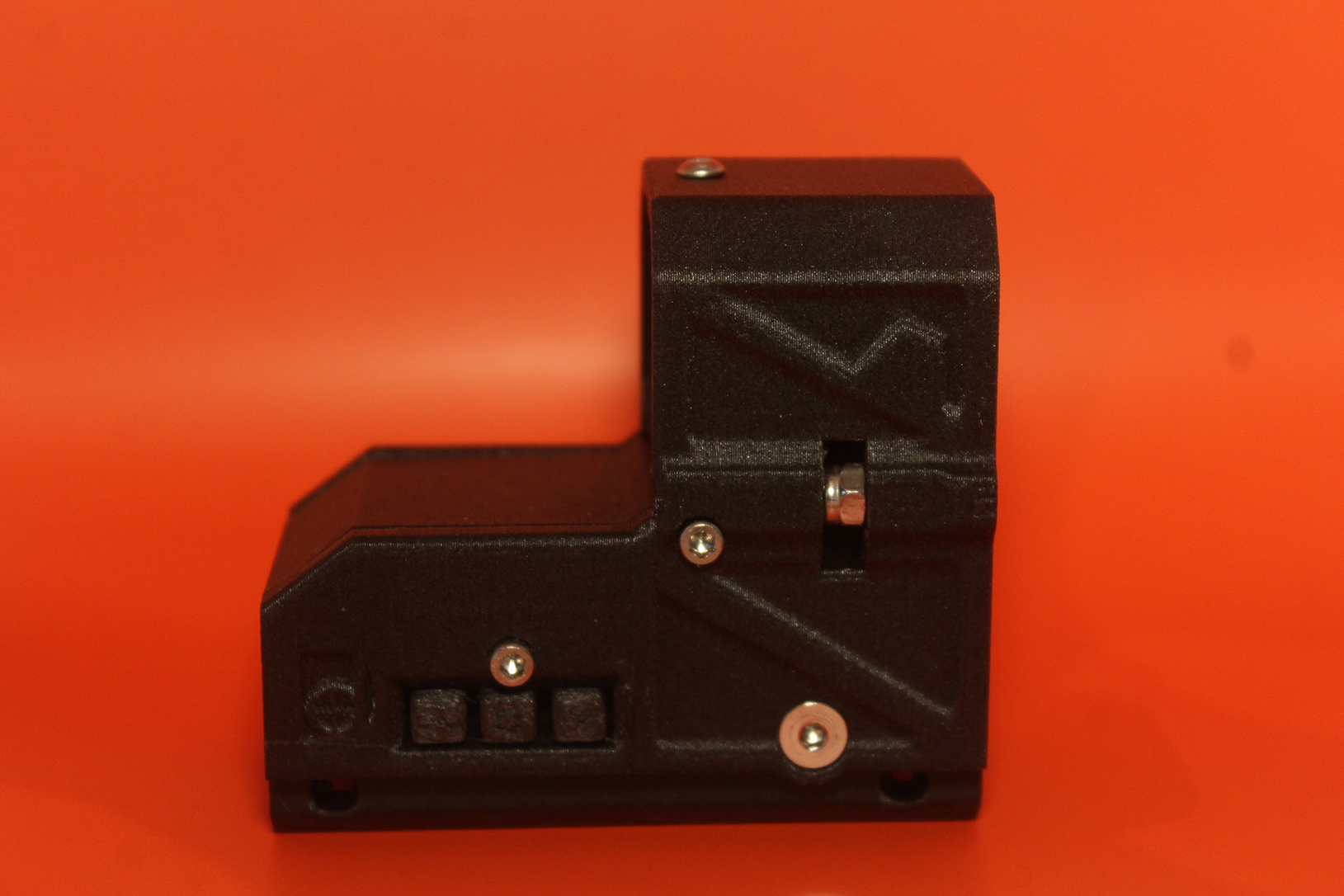

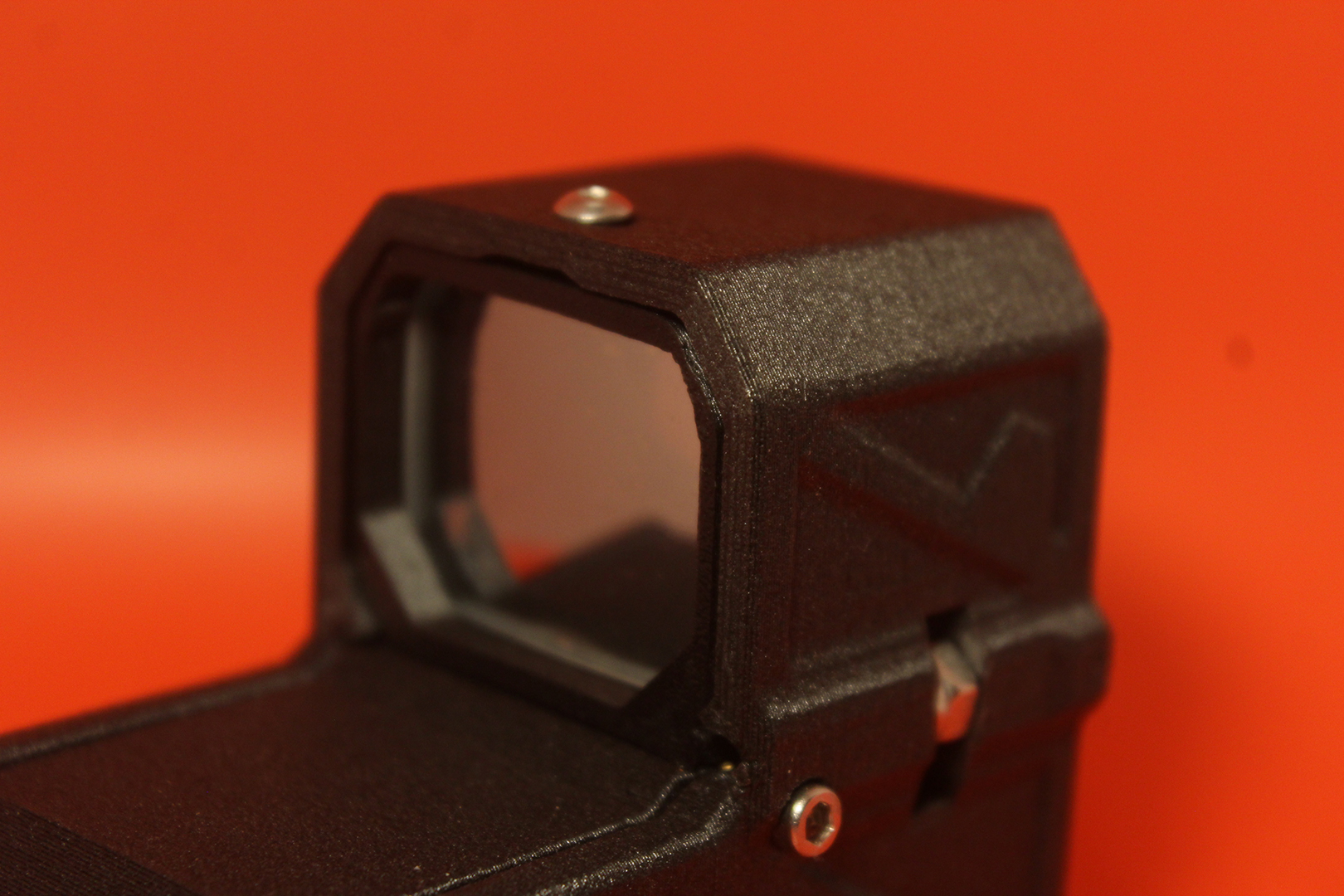

Advanced Weapon Management System: A smart Airsoft optic

Built from the Tachyon Electronics V4

BUY NOW

NEW V2 FEATURES

  • Redesigned zeroing for improved useability and reduced backlash- better resistance to vibrations
  • All New Internal USB Chargeable internal 1200Mah battery for in excess of 12 hrs of run time
  • USB Firmware updateing for new features and software improvements
  • TachyonLink Compatability for fully customiseable UI elements INCLUDING custom reticles
  • Sound-based shot & misfire detection - AWMS can now work even without a barrel sensor attached (with some limitations)
  • Brand new AVR128-series processor
  • Configurable screen saver
  • Settings profiles - save/load user settings into one of 4 separate profiles
  • More than 30x faster screen refresh rate for much smoother and more reponsive picture
  • Hopup Assist threshold angle can now be customized
  • Minor improvements to Compass and Battery measurement
  • New Modular UI- Customise what data you see where. 9 Different data fields and 9 different data formatcs (including off!)

FUNCTIONS

INFRARED/SHOCK AMMO COUNTER

Displays both number and visual bar with configurable style and behaviour

6 quick-change presets of 0-9999 rounds

Color changes at 25% and 10% of ammo remaining

Can count down or up

Shots detected using an infrared barrel sensor, sound, or both combined for misfire detection

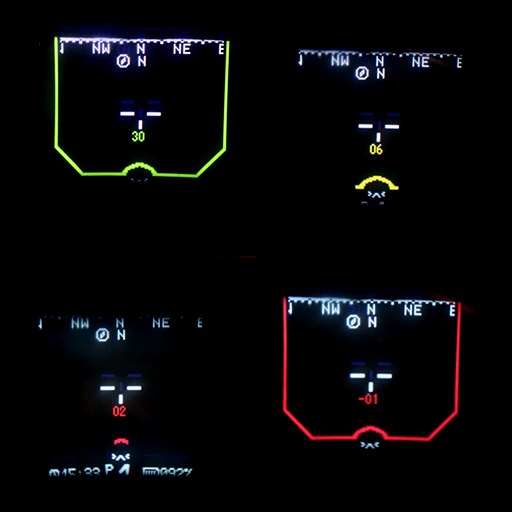

DYNAMIC AMMO BARS

3 colour presets for "good", "warn" and "critical"

Configurable between "full" ammo bars (extend up the side of the display) and "short" ammo bars (bottom only)

Color changes at 25% and 10% of ammo remaining

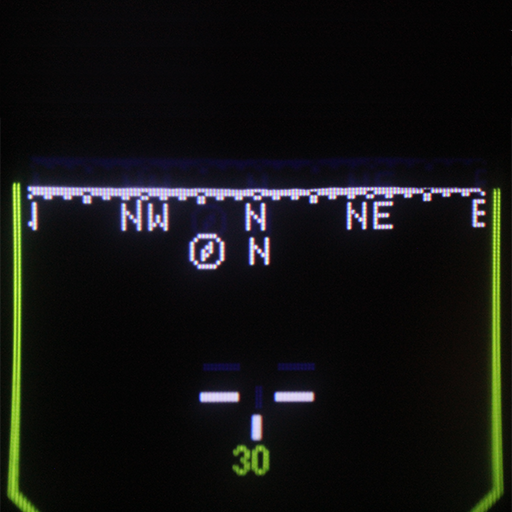

3-AXIS MAGNETIC COMPASS

Displays your current magnetic heading

4 Modes: Bearing (Azimuth), 8 Cardinal directions (N,NE,...), 16 Cardinal directions (N,NNE,NE,...) and Carbinal/bearing hybrid (video game style, snap to 5 degrees between cardinal directions but cardinal when directly north/northeast ect.

Critical for proper navigation and tactical awareness

Fully 3D with automatic ground reference - works under any angle and orientation

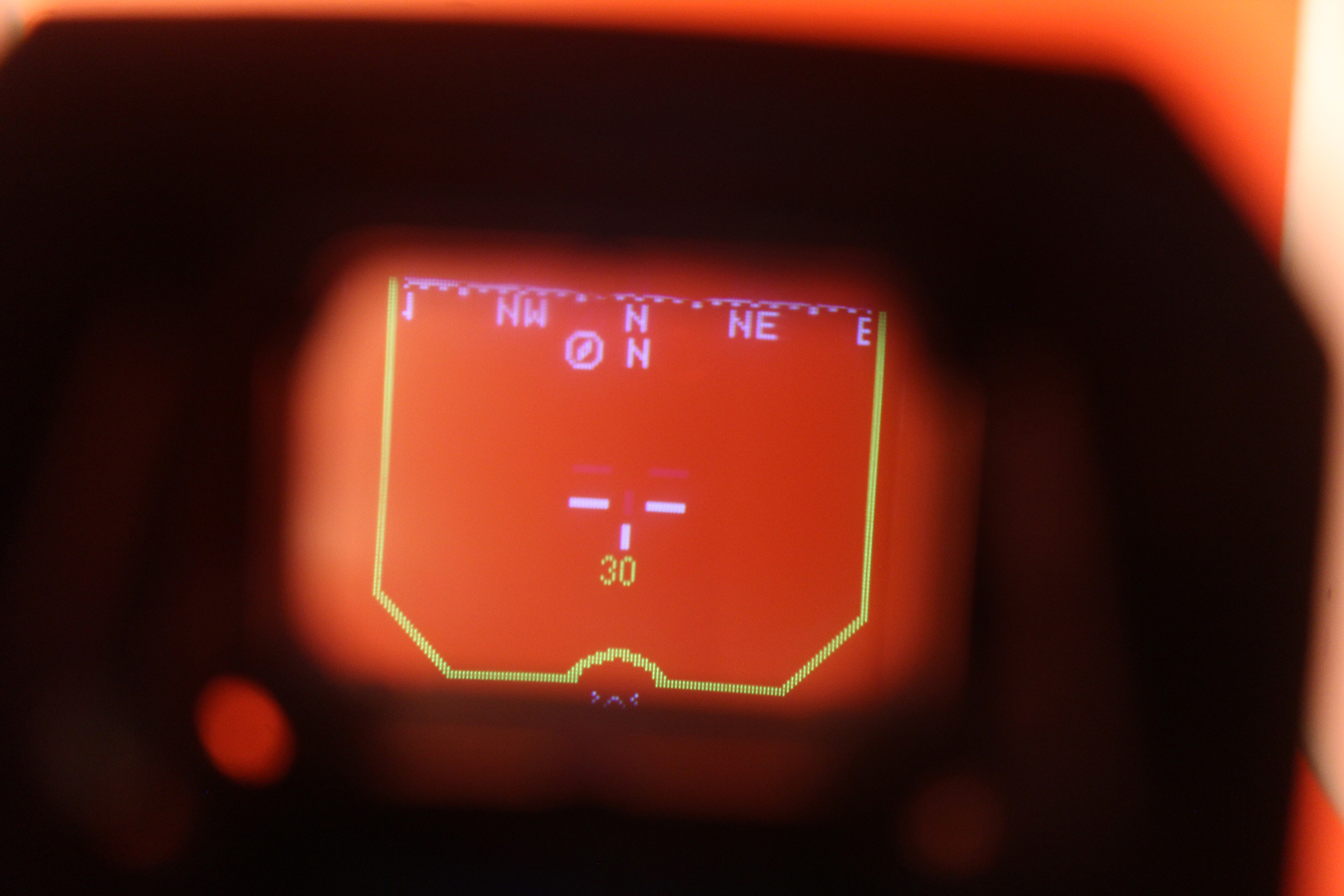

NEW Scrolling tape based compass element at screen top for ultimate videogame feel and easy directional awareness

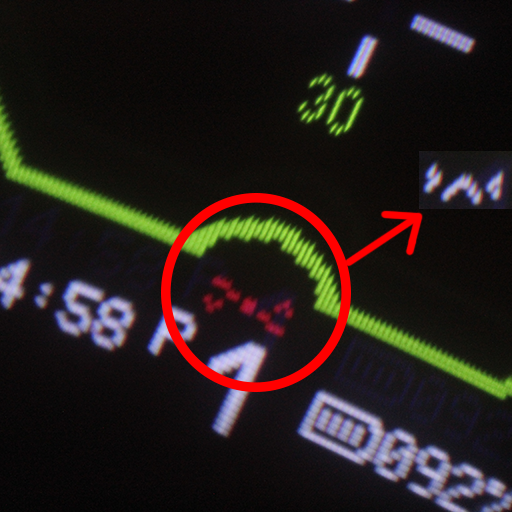

HOP-UP ASSIST

Lights up red when your weapon is tilted sideways too much

Helps you fire BBs with optimal, straight-upwards spin and maintain best range and accuracy

Configurable (1-10 degrees) tilt threshold angle

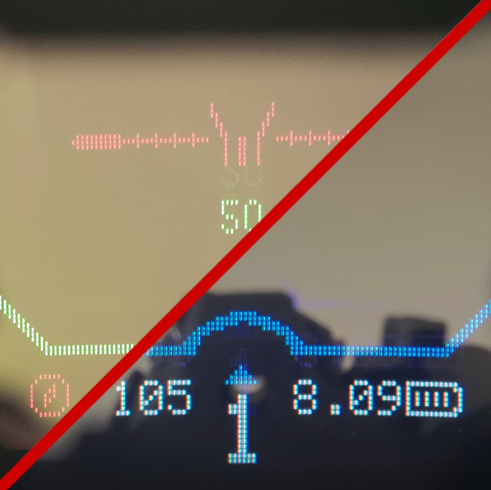

FULL CUSTOMIZATION

More than 30 different settings ranging from UI colors, styles, behaviour or feature configuration

Save your settings into 4 different profiles to switch between

Quick-change display brightness with configurable screen saver

Rotate the whole screen picture by 90 degrees for sideways mounting (you nutter!)

LONG BATTERY LIFE

Intergrated 1200mAh internal battery charged via USB provides long run time and totally wireless operation

large battery capacity provides over 12 hrs of continuous run time (4hr charge time)

Charge whilst you play with a rail mounted battery box

Device charges at 0.125A

How does it work?

The AWMS v1.2 has 3 modes of operation:

  1. Infrared detection - Fired BBs are detected using an IR barrel-mounted sensor. Most accurate with best results, but the external sensor must be attached, replacing any potential barrel attachments.
  2. Sound detection - Shots are detected through physical vibrations by an on-board contact microphone. No external sensor is needed, but functionality is slightly limited. See Sound detection for more information.
  3. Combined mode - Shots are detected using both methods at once, which enables misfire detection. When a shot is detected through sound, but no out-going BB is detected by the sensor, a warning is displayed.

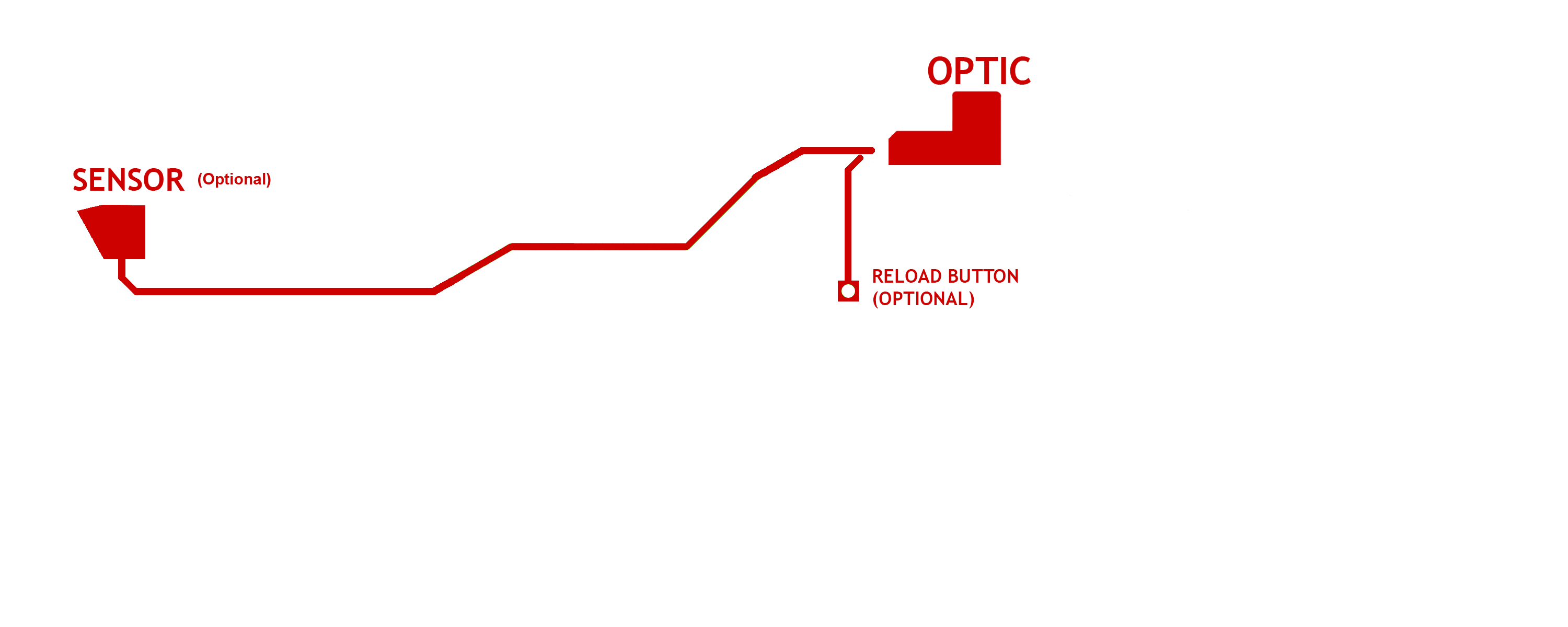

Setup is easy and simple. All you need to do, is to attach the barrel sensor (if used), and the AWMS sight to your weapon.

If you have more questions, please see my Youtube Playlist

Full Specifications

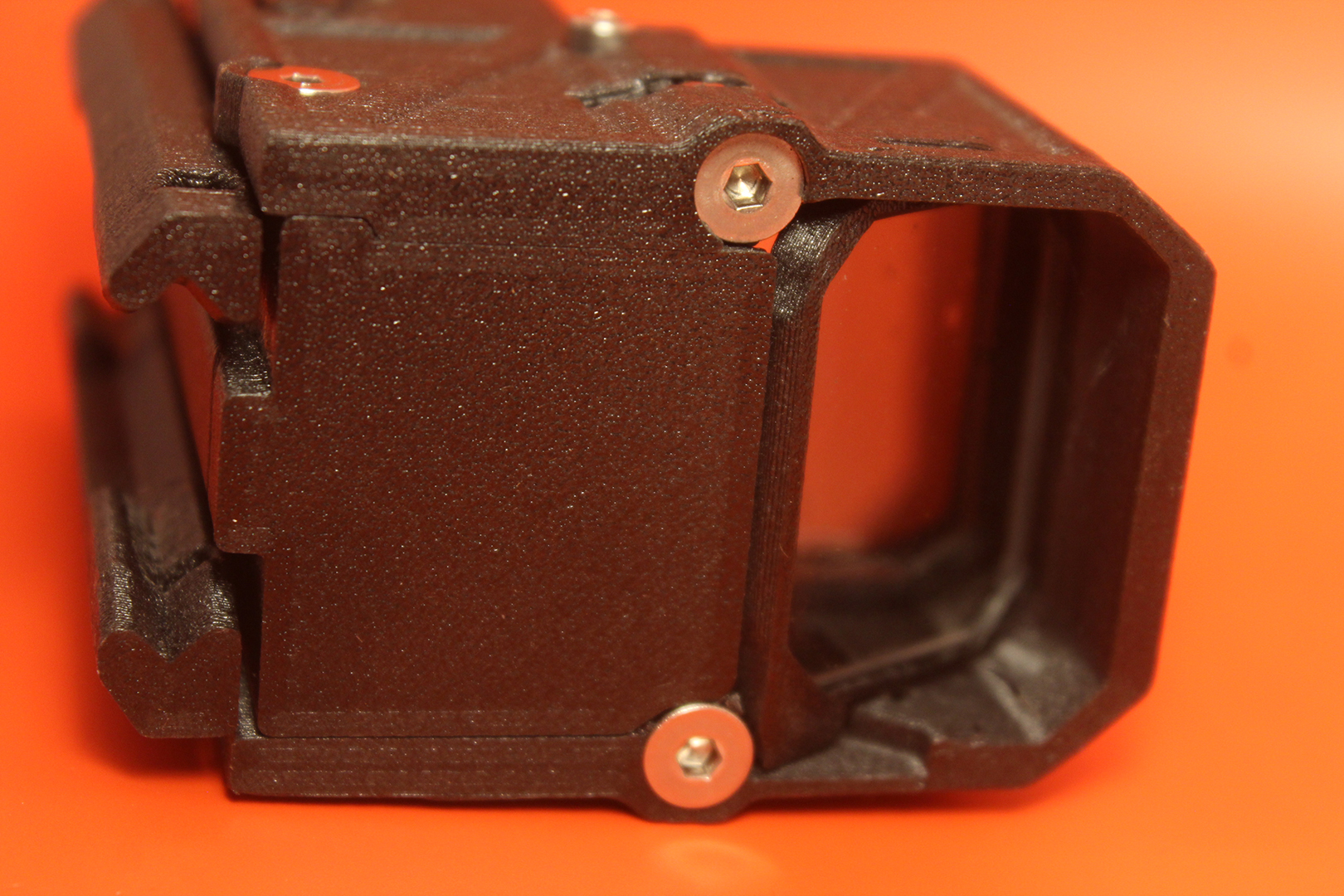

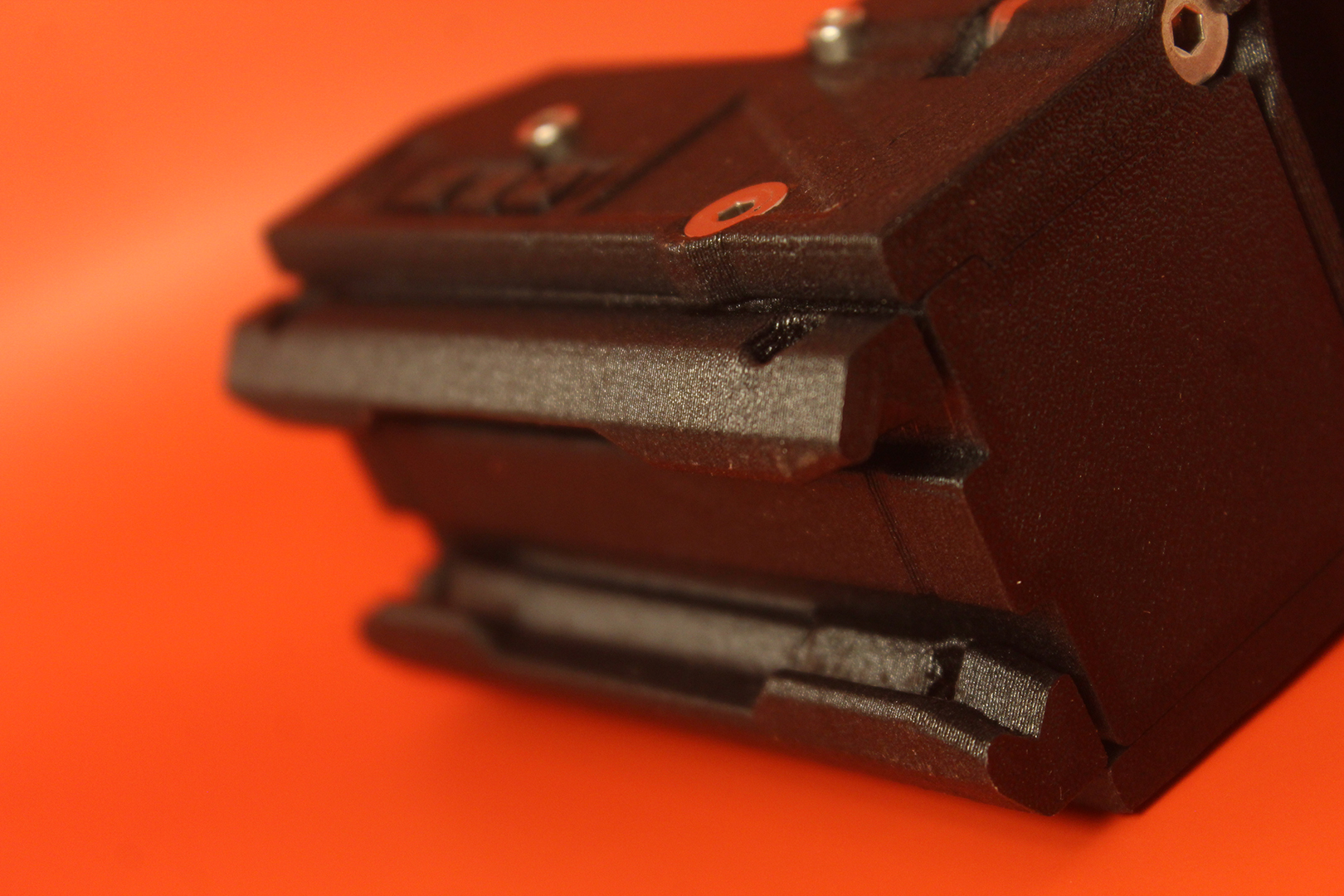

Mounting: Picatinny (RIS/RAS) Rail, 21-22 mm

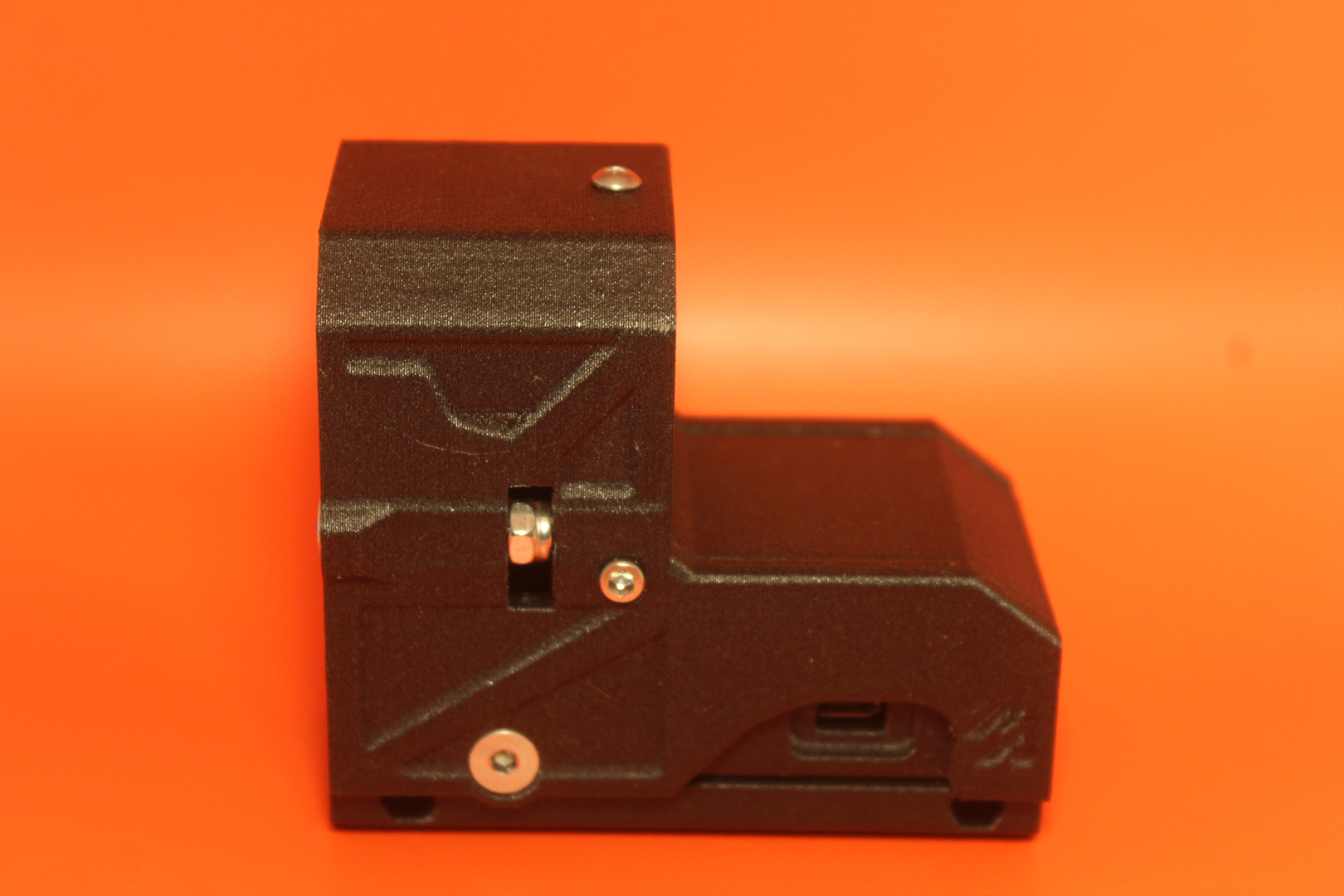

Enclosure dimensions (WxLxH): 59wx81Lx73H mm
Sensor mounting diameter: 14±2 mm (no thread required)
Input voltage: 5v USB
Internal battery: 1200mAh 1 cell Lion
Charge Input: 0.5a 5V USB Micro B
Firmware: Updateable via USB port
Display resolution: 128 x 128 pixels
Display color accuracy: 16 bit
